PRECISION RFQ ENGINE v4.2 • MILL-GRADE ALGORITHMIC SPEC SHEET

Instant Fabrication Cost &
Capacity Estimator

Configure structural steel tonnage, laser nesting parameters, and anti-corrosive finishes to calculate live budgeting indices with standard ISO 9001 and AWS D1.1 tolerances in real time.

trending_up

IS 2062: ₹64.50 / KG

Active Mill Price Index

straighten

±0.005" CNC

Guaranteed Cut Accuracy

schedule

24h Formal BOQ

Engineering Review Turnaround

INSTANT TONNAGE & COATING INDEX

Calibrated To Live Steel Stock

SAIL • TATA • JSW ZERO HIDDEN MARGIN

01 Fabrication Discipline

MANDATORY SPEC

02 Material Alloy & Grade

IS 2062 Grade E250 / E350

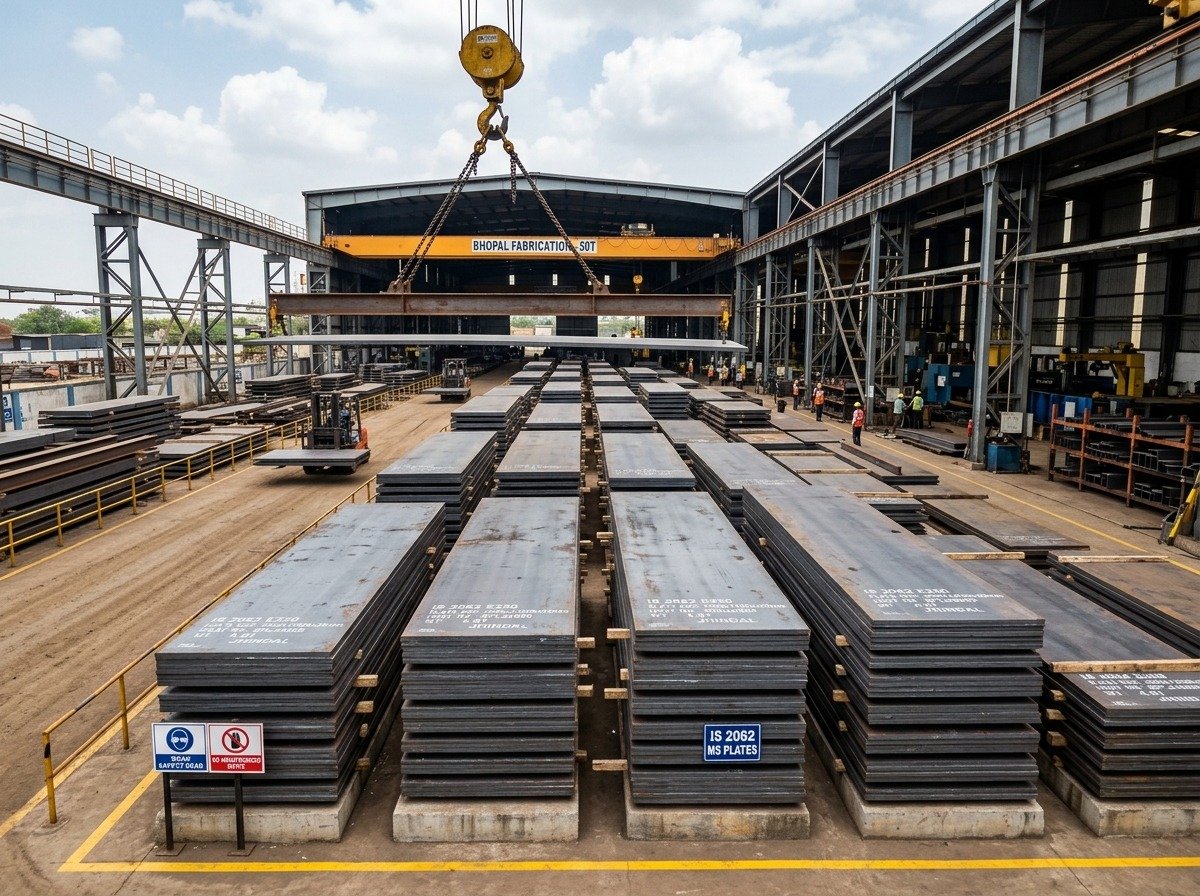

MS Mild Steel

Mild Steel (MS) is one of the most widely used materials in industrial fabrication due to its exceptional strength, flexibility, and cost-effectiveness.

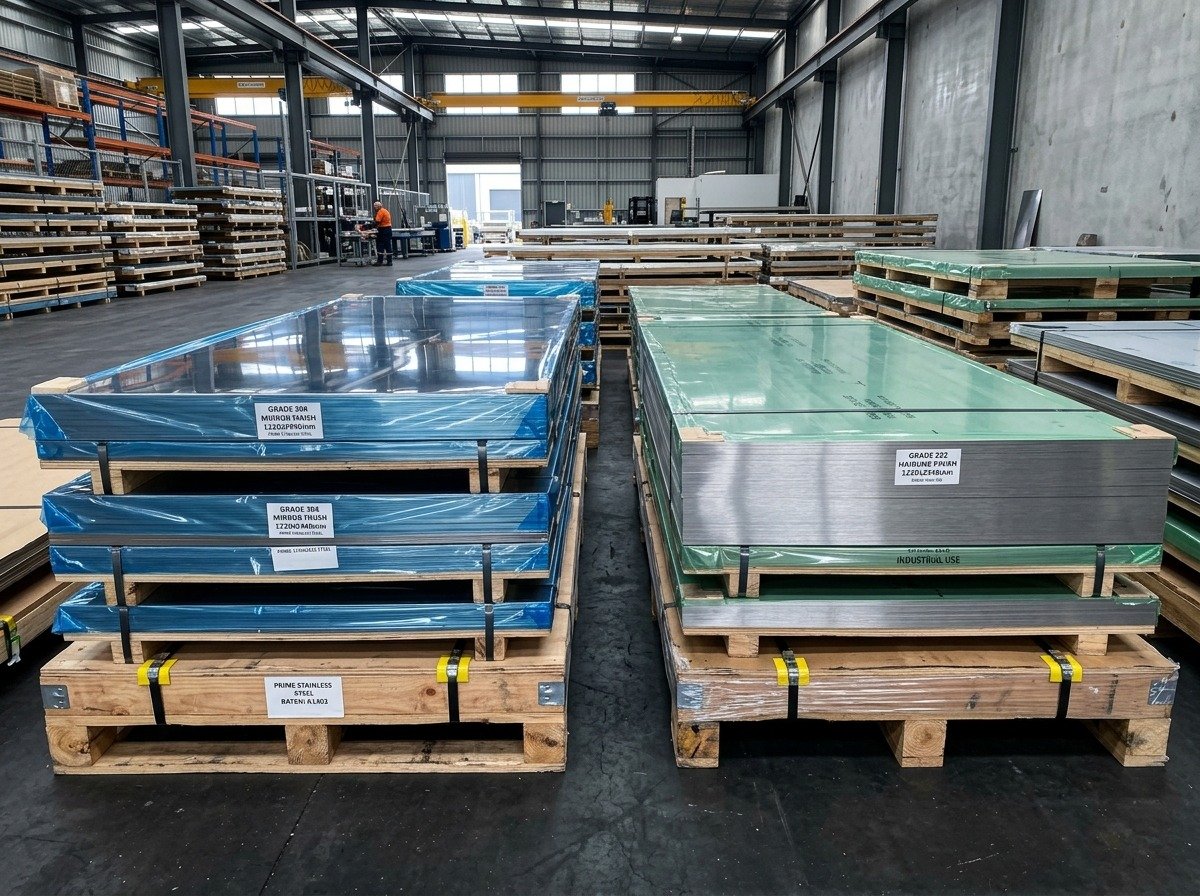

Stainless Steel

Stainless Steel (SS) is the preferred choice for applications requiring high corrosion resistance, hygienic surfaces, and superior strength.

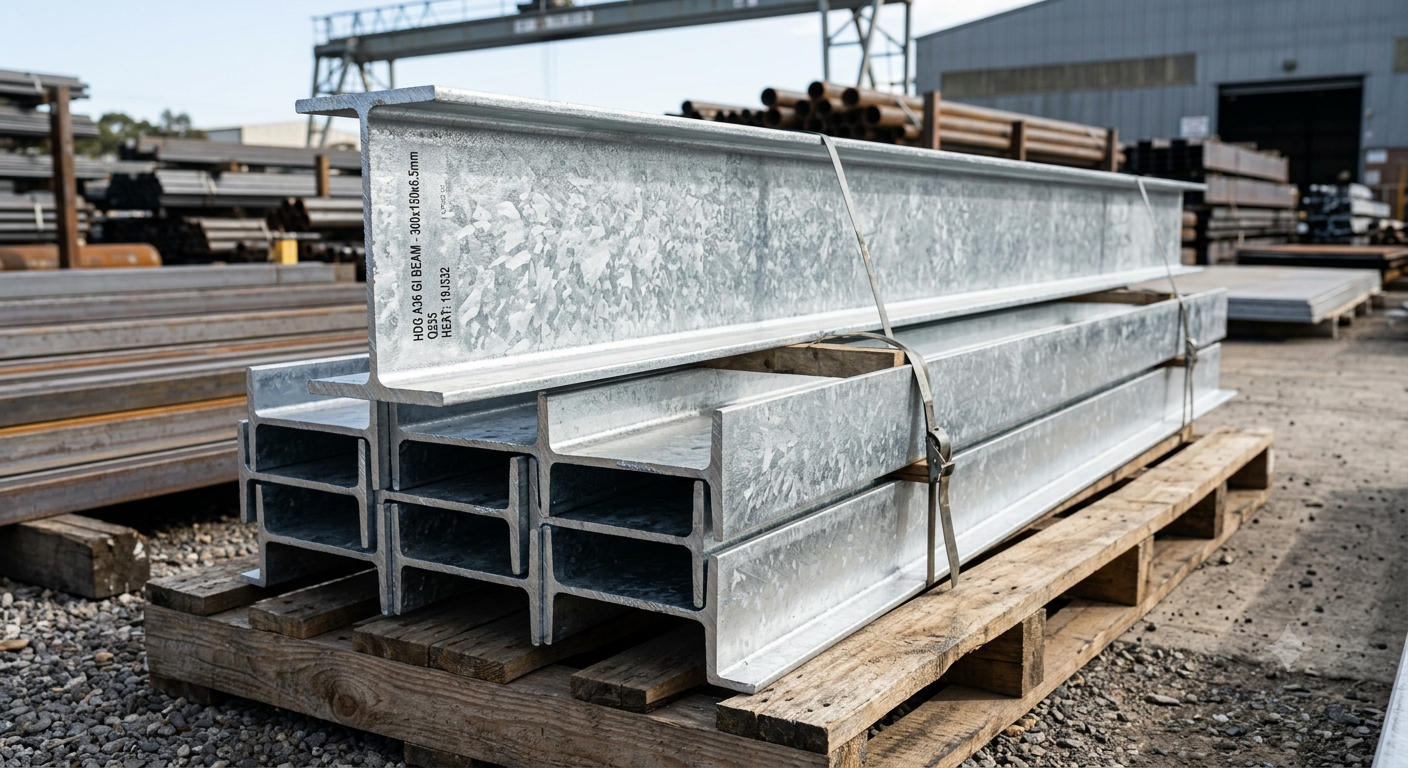

Galvanized GI

high-humidity environments, and industrial applications requiring long-term weather protection.

03 Scope Dimensioning

Quantity Metric Slider

5 MT 250 MT 500 MT

Project Weight

balance

verified_user Calculated raw steel volume equivalent:

45,000 KG Primary Steel

04 Surface Treatment & Site Assembly

TURNKEY COMPATIBLE

SA 2.5 Sand Blasting Total scale removal via copper slag blast cleaning. +₹4.5/KG scope

Zinc Chromate + 2x Epoxy High-solids industrial polyurethane topcoat finish. +₹7.8/KG scope

Hot Dip Galvanizing 80-100 Micron zinc bath immersion per ASTM standards. +₹16.0/KG scope

On-Site Crane & Rigging Deployment of 50T-150T mobile telescopic hydraulic cranes. +₹12.5/KG scope

05 CAD Blueprints & STEP Package

SECURE NDA ENCRYPTED

upload_file

Drag & Drop Plant Blueprint or CAD Package

Supports .DWG, .DXF, .STEP, .IFC, or structural .PDF drawings up to 100MB.

receipt_long Live Estimate Summary

LIVE QUOTE AUDIT

ESTIMATED FABRICATION SCOPE

₹ 38.0 - 43.5 L

Unit Weight Rate: ₹84.30 / KG Base+Coat

schedule Production Cycle: 24 - 30 Working Days

verified Applicable Standard: AWS D1.1 & IS 800:2007

inventory_2 Raw Steel Volume: 45.0 Metric Tonnes

Shop Bay Queue Status 82% CAPACITY

Lock In Spec Sheet & Formal Quote chatDirect Review on WhatsApp

ISO 9001:2015 AWS D1.1 ASME SEC-IX

verified

Guaranteed ±0.005" CNC Accuracy

Engineering Blueprints

Turnkey Structural Parameters

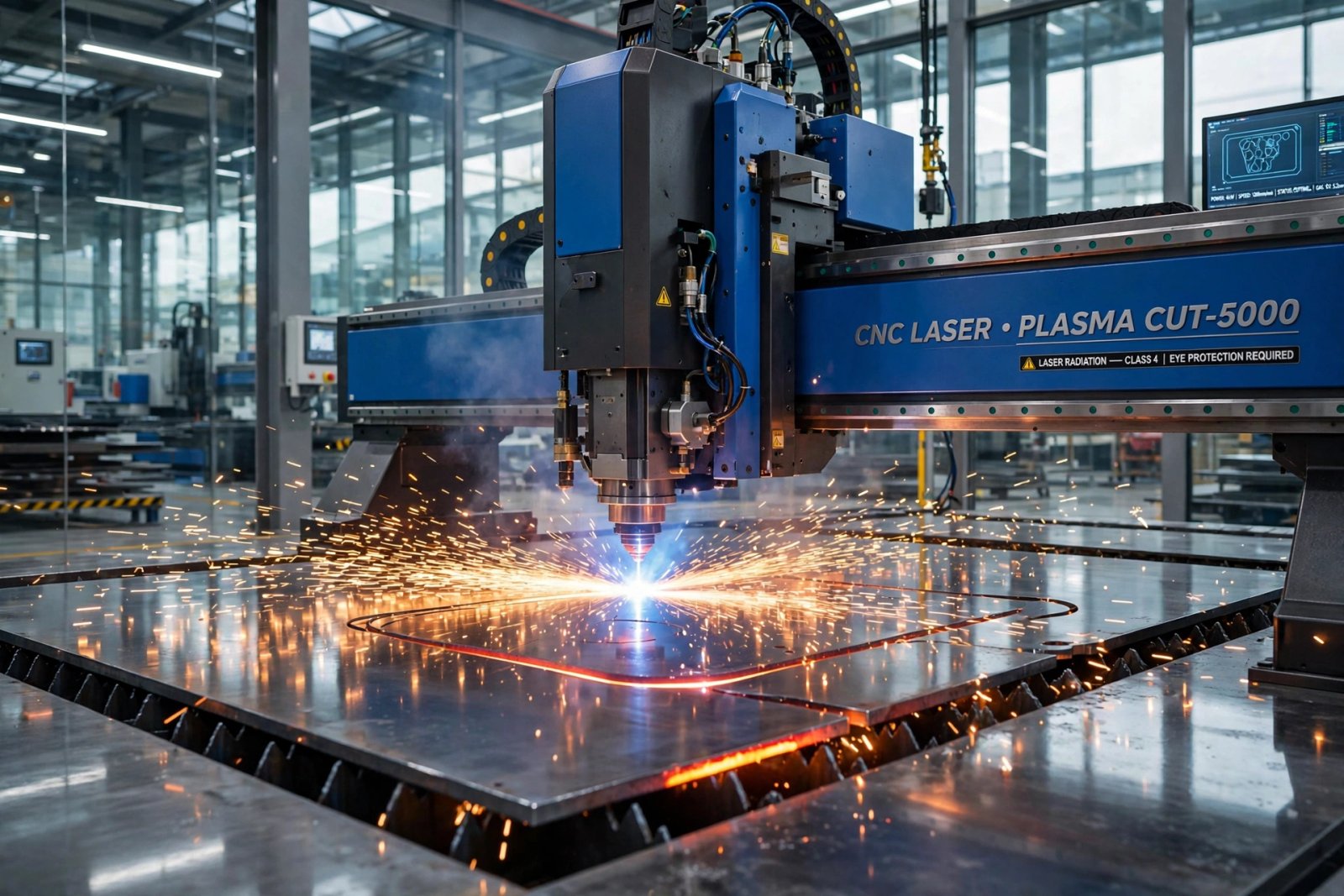

Laser Nesting Bed 6000mm × 2500mm High-precision Laser

Plate Bending Capacity 600 Tonne CNC Up to 25mm thickness bend

Welding Methodology SAW & GMAW / FCAW 100% UT/X-Ray Weld Inspected

Monthly Tonnage Capacity 1,800 MT / Month Across Bay 1 to Bay 4
